.jpg "A-87641197 Auger Drive Sprocket") |
.jpg "A-87032323 Clutch Roll Drive Sprocket") |
.jpg "A-87047932 Jaw Clutch Sprocket") |
| A-87641197 | A-87032323 | A-87047932 |
| Auger Drive Sprocket | Clutch Roll Drive Sprocket | Jaw Clutch Sprocket |
| 13 Tooth, 50 Chain, 1.13” Hex Bore | 22 Tooth, 80 Chain, 1.75” Bore | 15 Tooth, 60 Chain, 2” Bore |
.jpg "A-84244813 Rotor Cutter Driven Sprocket") |
.jpg "A-87660578 Hydraulic Rotor Cutter") |
.jpg "A-87660330 Drive Roll Sprocket") |
| A-84244813 | A-87660578 | A-87660330 |
| Rotor Cutter Driven Sprocket | Hyd. Rotor Cutter Reverse Sprocket | Drive Roll Sprocket (RH) |
| 29 Tooth, 80 Chain, 1.37” Spline Dia., 23 Spline | 22 Tooth, 80 Chain, 1.75” Bore | 28 Tooth, 60 Chain, 1.58” Bore |
.jpg "A-86977217 Feeder Drive Sprocket") |
.jpg "A-86633715 Rotor Feeder Drive Sprocket") |

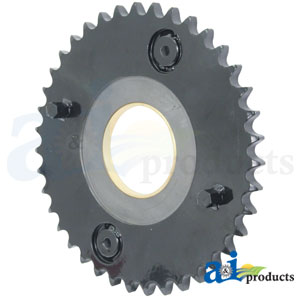

.jpg "A-86978871 Rotor Feeder Drive Sprocket") |
| A-86977217 | A-86633715 | A-86978871 |
| Feeder Drive Sprocket | Rotor Feeder Drive Sprocket | Rotor Feeder Drive Sprocket |
| 41 Tooth, 60 Chain, 1.38” Bore | 31 Tooth, 60 Chain, 2.5” Bore | 39 Tooth, 60 Chain, 3” Bore |
.jpg "A-87656795 Floor Roll, Speed Increase Sprocket") |
.jpg "A-84401598 Idler Sprocket") |
.jpg "A-87017554 1 Idler Sprocket") |
| A-87656795 | A-84401598 | A-87017554 |
| Floor Roll Speed Sprocket | Idler Sprocket | Idler Sprocket |
| 29/41 Tooth, 80/60 Chain, 23 Spline, 1.23” Spline Dia. | 13 Tooth, 80 Chain, .64” Bore | 12 Tooth, 100 Chain, 0.64” Bore |
.jpg "A-87041952 Idler Sprocket, Plastic") |
.jpg "A-87056511 Main Frame Roll Sprocket") |
.jpg "A-86544702 Pickup Sprocket Assembly") |
| A-87041952 | A-84401598 | A-86544702 |
| Idler Sprocket, Plastic | Main Frame Roll Sprocket | Pickup Sprocket Assembly, w/ Bushing |
| 18 Tooth, 20/40 Chain, 1.03” Bore. | 28 Tooth, 80 Chain, 1.5” Hex Bore | 21 Tooth, 50 Chain, 2” Bore |
.jpg "A-86618109 Standard Pickup Reel & Drive Sprocket") |
.jpg "A-86629624 Pickup Drive Sprocket") |
.jpg "A-86641546 Pickup Drive Sprocket") |
| A-86618109 | A-86629624 | A-86641546 |
| Standard Pickup Reel & Drive Sprocket | Pickup Drive Sprocket | Pickup Drive Sprocket |
| 29/35 Tooth, 80/50 Chain, 1.38” Spline Dia., 23 Spline | 21 Tooth, 50 Chain, 1” Bore | 33 Tooth, 50 Chain, 1.97” Bore |
.jpg "A-87047646 Pickup Driven Sprocket") |
.jpg "A-87047934 Clutch Pickup Sprocket") |
.jpg "A-87397995 Pickup Speed Increase Sprocket") |
| A-87047646 | A-87047934 | A-87397995 |
| Pickup Driven Sprocket | Clutch Pickup Sprocket, w/Bushing | Pickup Speed Increase Sprocket |
| 17 Tooth, 50 Chain, 1” Bore | 17 Tooth, 60 Chain, 2” Bore | 18 Tooth, 50 Chain, 1” Bore |
.jpg "A-87602188 Pickup Sprocket") |
.jpg "A-87641160 Pickup Reel Sprocket") |
.jpg "A-86637251 Pickup Tine Bar Driven Sprocket") |
| A-87602188 | A-87641160 | A-86637251 |
| Pickup Sprocket | Pickup Reel Sprocket | Pickup Tine Bar Driven Sprocket |
| 17 Tooth, 50 Chain, 1” Bore | 48 Tooth, 50 Chain, 1.13” Hex Bore | 44 Tooth, 50 Chain, 1.13” Hex Bore |
.jpg "A-87654402 Overrunning Clutch Pickup Sprocket") |
.jpg "A-87664055 Rotor Sprocket") |
.jpg "A-87664056 Rotor Drive Sprocket") |
| A-87654402 | A-87664055 | A-87664056 |
| Overrunning Clutch Pickup Sprocket | Rotor Sprocket (LH) | Rotor Drive Sprocket (LH) |
| 15 Tooth, 60 Chain, 1.38” Bore | 25 Tooth, 80 Chain, 1.5” Hex Bore | 18/14/13 Tooth, 100/80 Chain, 27 Spline, 1.64” Spline Dia. |
.jpg "A-87664057 Rotor Drive Sprocket") |
.jpg "A-87660324 Fixed Roll, Stuffer Feeder Drive Sprocket") |
.jpg "A-86640891 Sprocket & Hub") |
| A-87664057 | A-87660324 | A-86640891 |
| Rotor Drive Sprocket (LH) | Fixed Roll, Stuffer Feeder Drive Sprocket | Sprocket & Hub |
| 20/17 Tooth, 100/80 Chain, 27 Spline, 1.64” Spline Dia. | 15 Tooth, 80 Chain, 1.51” Hex Bore | 13 Tooth, 60 Chain, 17 Outer Spline/12 Inner Spline |
.jpg "A-86536060 Starter Roll Driven Sprocket") |
.jpg "A-87660325 Stuffer Feeder Sprocket") |

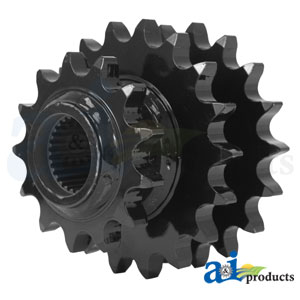

.jpg "A-87664054 Stuffer Feeder LH Drive Sprocket") |
| A-86536060 | A-87660325 | A-87664054 |
| Starter Roll Drive Sprocket w/ Bushing | Stuffer Feeder Sprocket | Stuffer Feeder LH Drive Sprocket |
| 20 Tooth, 60H Chain, 2” Bore | 15 Tooth, 80 Chain, 1.58” Bore | 18/18/13 Tooth, 80 Chain, 27 Spline, 1.64” Spline Dia. |
.jpg "A-86536060 Starter Roll Driven Sprocket") |
.jpg "A-AE74596 Drive Sprocket") |
.jpg "A-AE52633 Mega Wide Pickup Drive Sprocket") |
| A-87664058 | A-AE74596 | A-AE52633 |
| Stuffer Feeder LH Drive Sprocket | Drive Sprocket | Drive Sprocket, Mega Wide Pickup |
| 25/17 Tooth, 80 Chain, 27 Spline, 1.64” Spline Dia. | 30 Tooth, 80 Chain, 1.504” Bore | 40 Tooth, 50 Chain, 1.253” Bore |
.jpg "A-AE74598 Drive Double Sprocket") |
.jpg "A-AE39301 Main Drive Double Sprocket") |
.jpg "A-AXE15284 Idler Sprocket") |
| A-AE74598 | A-AE39301 | A-AXE15284 |
| Drive Double Sprocket | Main Drive Double Sprocket | Idler Sprocket |
| 24/30 Tooth, 60 Chain on 24 Tooth, 80 Chain on 30 Tooth | 17/17 Tooth, 60 Chain, 1.253” Bore | 12 Tooth, 80 Chain, 1.573” Bore |
.jpg "A-CC102997 Pickup Sprocket") |
.jpg "A-CC106976 Pickup Double Sprocket") |
.jpg "A-CC107055 Pickup Drive Sprocket") |
| A-CC102997 | A-CC106976 | A-CC107055 |
| Pickup Sprocket | Pickup Double Sprocket | Pickup Drive Sprocket |
| 15 Tooth, 10B Chain, 1” Bore | 23/23 Tooth, 10B Chain, 1.181” Bore | 23 Tooth, 10B Chain, 1.181” Bore |
.jpg "A-DC33288 Pickup Drive Double Sprocket") |

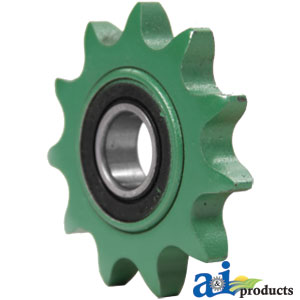

.jpg "A-AFH205820 Pickup Idler Sprocket") |
.jpg "A-AE51818 Mega Wide Pickup Double Sprocket") |
| A-DC33288 | A-AFH205820 | A-AE51818 |
| Pickup Drive Double Sprocket | Pickup Idler Sprocket | Mega Wide Pickup Double Sprocket |
| 18/25 Tooth, 10B Chain, 1” Bore | 11 Tooth, 50 Chain, .625” Bore | Idler w/Bearings, 40/22 Tooth, 50 Chain, 1.127” Bore |
.jpg "A-E86317 Pickup Slip Clutch Sprocket") |
.jpg "A-E131608 Pickup Slip Clutch Sprocket") |
.jpg "A-AE39652 Lower Drive Double Roll Sprocket") |
| A-E86317 | A-E131608 | A-AE39652 |
| Pickup Slip Clutch Sprocket | Pickup Slip Clutch Sprocket | Lower Drive Double Roll Sprocket |
| Slow Down Sprocket, 25 Tooth, 50 Chain, 2.625” Bore, 4 Bolt, 3.307” Bolt Circle |
38 Tooth, 50 Chain, 2.625” Bore, 4 Bolt, 3.307” Bolt Circle |
20/40 Tooth, 60 Chain, 1.504” Bore |
.jpg "A-AE54302 Lower Drive Double Roll Sprocket") |
.jpg "A-AE39654 Upper Drive Roll Sprocket") |
.jpg "A-AE54301 Starter Roll Sprocket") |
| A-AE54302 | A-AE39654 | A-AE54301 |
| Lower Drive Double Roll Sprocket | Upper Drive Roll Sprocket | Starter Roll Sprocket |
| 40/24 Tooth, 60 Chain, 1.504” Bore | 40 Tooth, 60 Chain, 1.504” Bore | 24 Tooth, 60 Chain, 1.504” Bore |

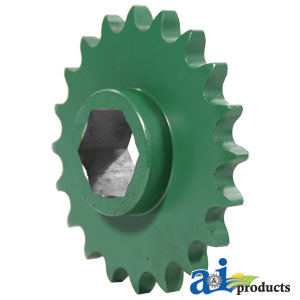

.jpg "A-AE39650 Starter Roll Drive Sprocket") |
.jpg "A-FH304862 Slip Clutch Sprocket, Mega Pickup") |
.jpg "A-AE74597 Drive Double Sprocket") |
| A-AE39650 | A-FH304862 | A-AE74597 |
| Starter Roll Drive Sprocket | Slip Clutch Sprocket, Mega Pickup | Drive Double Sprocket |
| 20 Tooth, 60 Chain, 1.504” Bore | 33 Tooth, 50 Chain, 2.625” Bore, 4 Bolt, 3.307” Bolt Circle |
13/13 Tooth, 80 Chain, 1.254” Bore |
